V1Effortless Precision Meets Commanding Presence

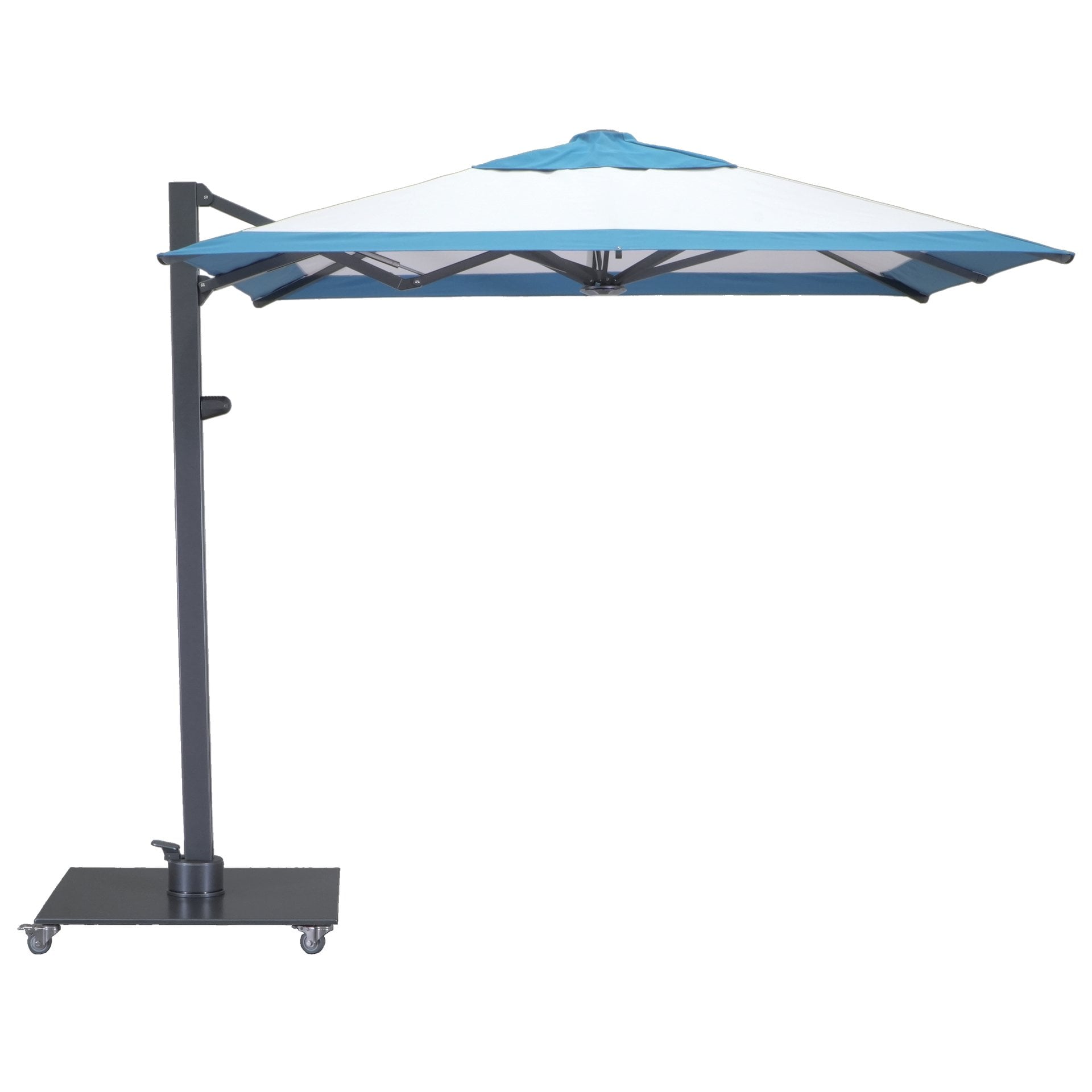

V1 Aluminum Telescoping Cantilever
Where ancient shade engineering meets modern innovation, the V1 redefines cantilever performance. A gas-assisted mechanism delivers smooth, gliding canopy movement without cranks or complex mechanisms. The patented telescoping rib design keeps ribs elevated above table height — preserving unobstructed space below. Thickened aluminum profiles and reinforced construction ensure wind-resistant stability. Engineered for commercial environments that demand reliability without compromise.
Product Features

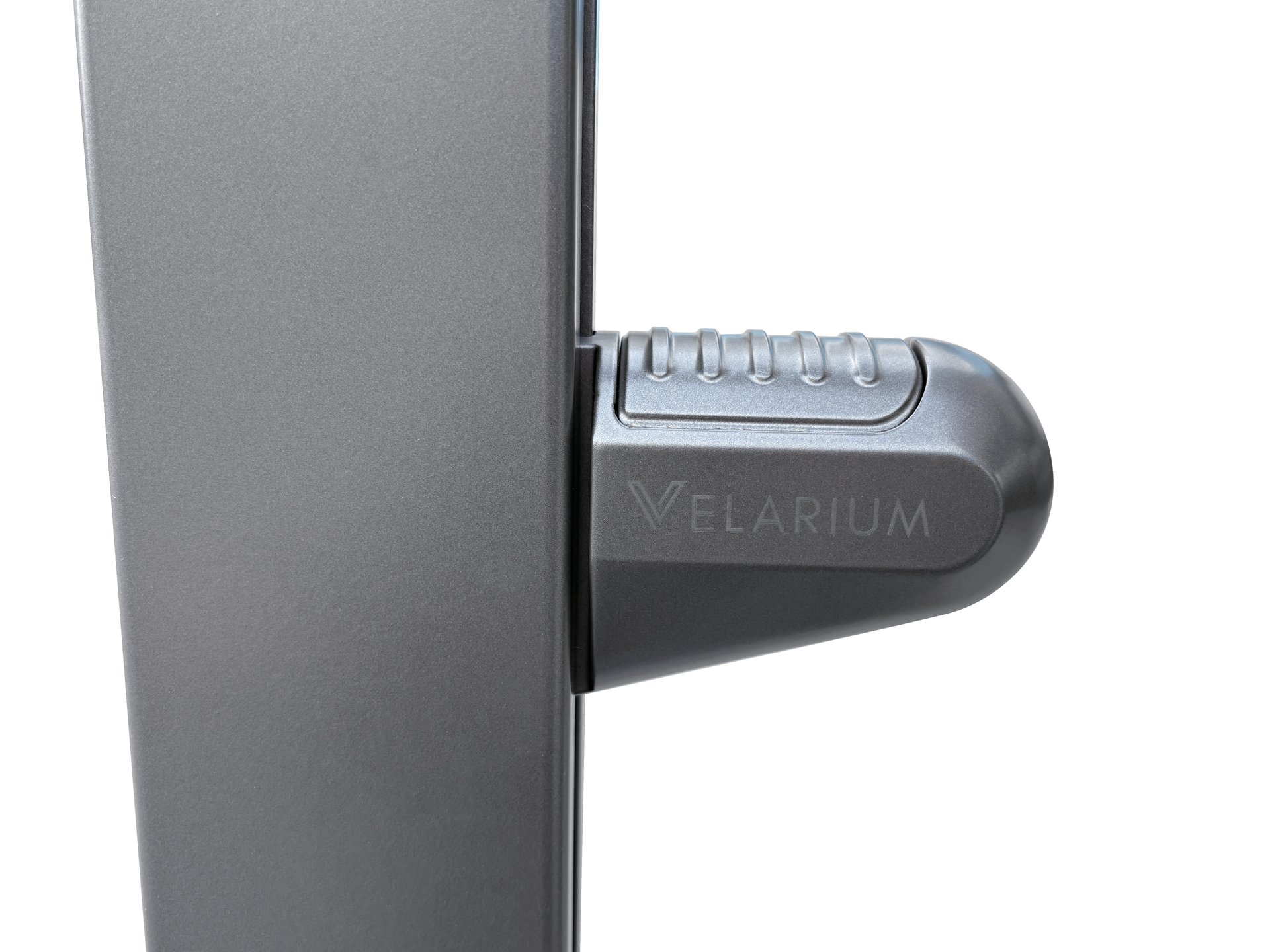

Gas-Assisted Open/Close System
- Effortless Operation: Smooth, gliding canopy movement with minimal effort
- Simplified Design: No cranks or complex mechanisms required
- Seamless Experience: Intuitive operation for daily commercial use
- Reliable Performance: Engineered for consistent, trouble-free functionality

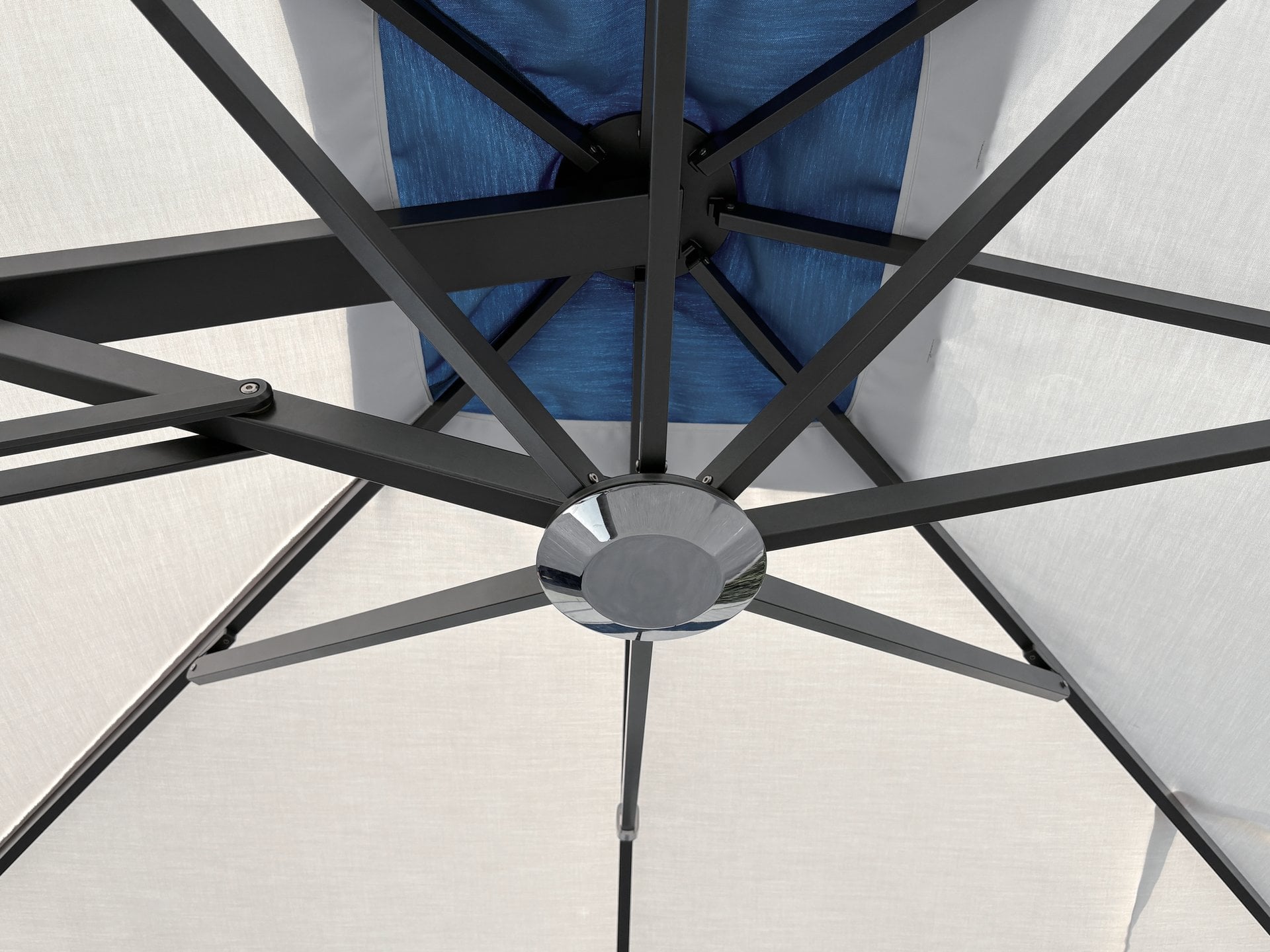

Patented Telescoping Rib Design
- Elevated Clearance: Ribs remain above table height during operation
- Unobstructed Space: Preserves clean, functional area beneath the canopy
- Enhanced Usability: Prevents contact with tabletops and furnishings
- Engineering Innovation: Patented design for superior user experience
Reinforced Aluminum Construction
- Thickened Mast: Heavy-duty aluminum pole engineered for maximum strength
- Reinforced Ribs: Enhanced structural support for large canopy coverage
- Commercial-Grade Materials: Built to withstand demanding hospitality environments
- Corrosion Resistance: Powder-coated finish protects against harsh weather
Wind-Resistant Structure
- Superior Stability: Robust design engineered for strong wind conditions
- Safe Performance: Reliable operation even in challenging weather

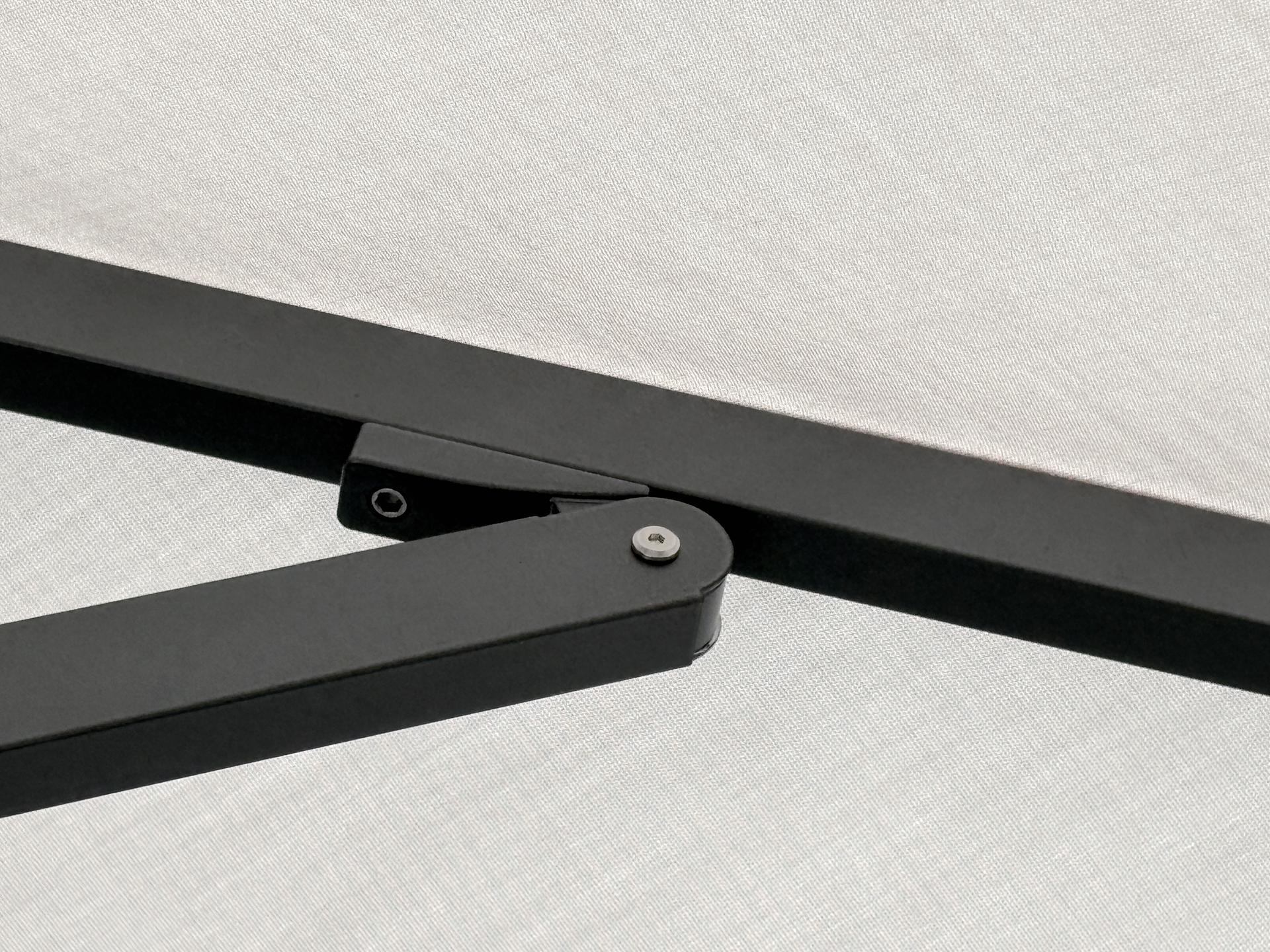

- Structural Integrity: Precision-engineered joints for exceptional rigidity
- Peace of Mind: Confidence in demanding outdoor environments
Canopy Security & Tensioning

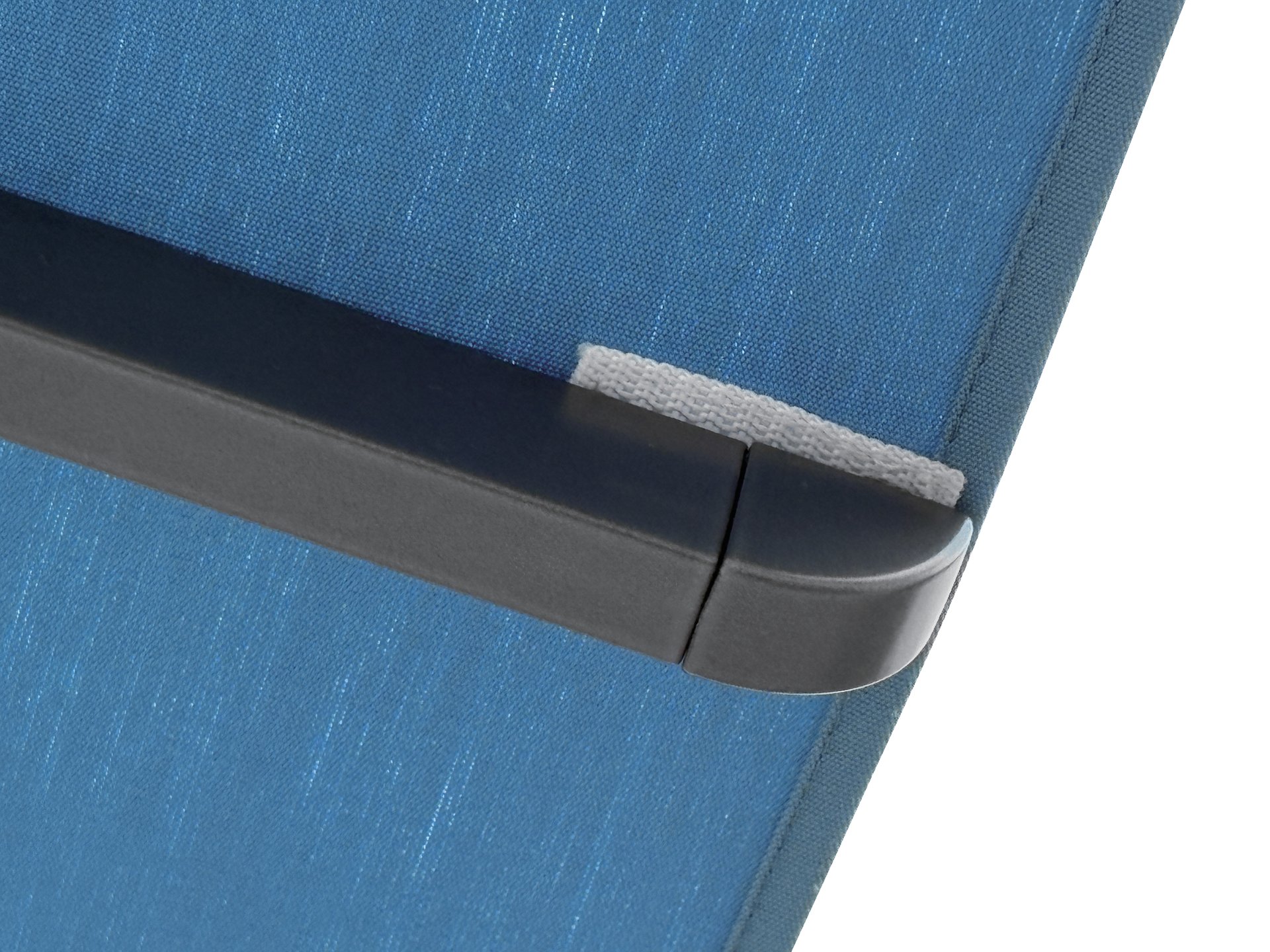

- Reinforced Grommets: Screw-fastened to rib tips for secure attachment
- Consistent Tension: Keeps canopy tight and precisely aligned
- Firm Anchoring: Securely fastened to frame for wind stability
- Professional Appearance: Maintains taut, wrinkle-free presentation
Available Sizes & Configurations
From intimate dining spaces to expansive outdoor terraces — select the ideal size and shape for your commercial environment
Item ID: V1-A330
Shape: Round
Canopy Size: 11' / 3.3m diameter
Canopy Dimension (A): 129.92" (3300mm)
Clearance (B): 82.68" (2100mm)

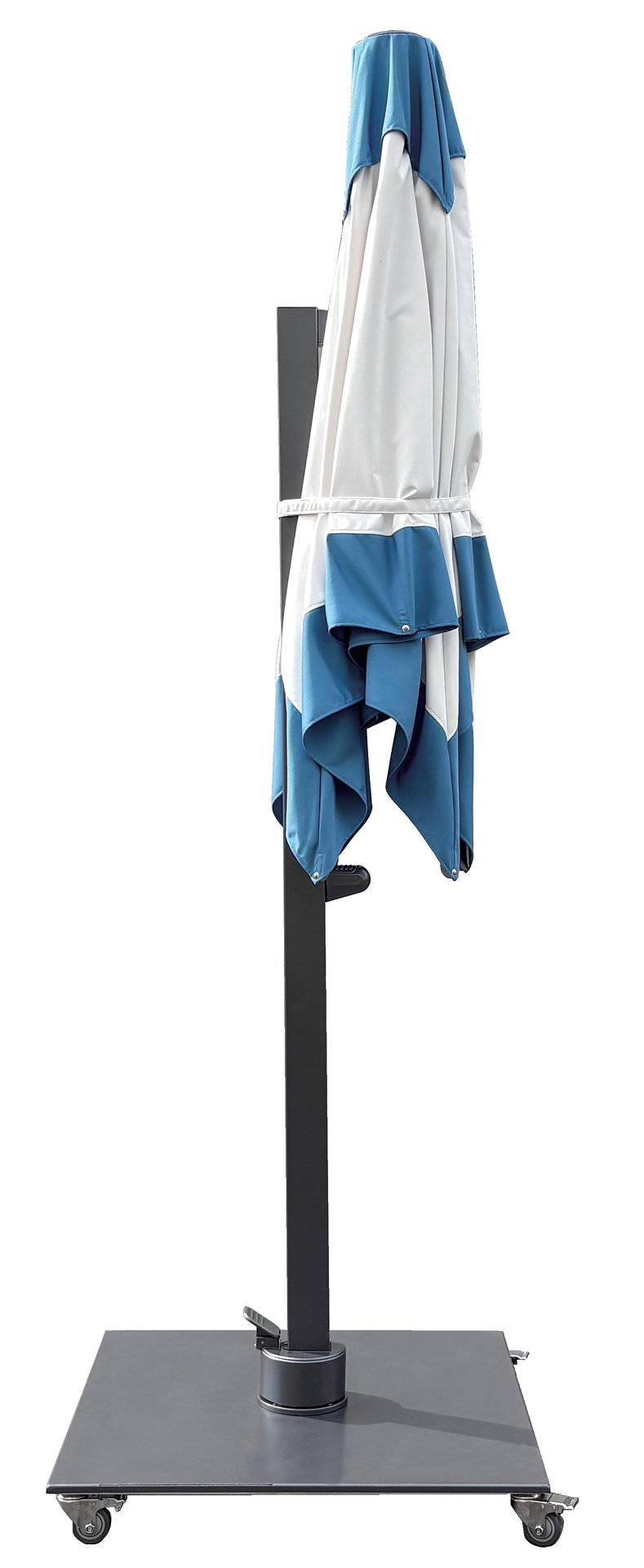

Closed Height (C): 41.34" (1050mm)
Open Height (D): 125.98" (3200mm)
Pole Diameter/Dimensions: 2.4" x 3.46" (61 x 88mm)
Number of Ribs: 8
Weight: 70.4 lbs (32kg)
Min. Base Weight: 400 lbs (181.8kg)
Wind Rating: Grade 6
Item ID: V1-A25R
Shape: Square
Canopy Size: 8.2' x 8.2' / 2.5m x 2.5m
Canopy Dimension (A): 98.43" x 98.43" (2500 x 2500mm)
Clearance (B): 78.74" (2000mm)
Closed Height (C): 37.80" (960mm)
Open Height (D): 121.26" (3080mm)
Pole Diameter/Dimensions: 2.4" x 3.46" (61 x 88mm)
Number of Ribs: 8
Weight: 74.8 lbs (34kg)
Min. Base Weight: 265 lbs (120kg)
Wind Rating: Grade 6
Item ID: V1-A30R
Shape: Square
Canopy Size: 10' x 10' / 3m x 3m
Canopy Dimension (A): 118.11" x 118.11" (3000 x 3000mm)
Clearance (B): 82.68" (2100mm)
Closed Height (C): 35.43" (900mm)
Open Height (D): 125.98" (3200mm)
Pole Diameter/Dimensions: 2.4" x 3.46" (61 x 88mm)
Number of Ribs: 8
Weight: 79.2 lbs (36kg)
Min. Base Weight: 400 lbs (181.8kg)
Wind Rating: —
Frame Finishes
Available Fabric
Suntech
Sunbrella
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Sunbrella
Sunbrella
Sunbrella
Sunbrella
Sunbrella
Base Options
Base Cover
V-Series Aluminum Plate Cover – Brown Marble
B-DC2468-BRM
V-Series Aluminum Plate Cover – Summit White
B-DC2468-SWH
V-Series Aluminum Plate Cover – Special Walnut
B-DC2468-SW
V-Series Aluminum Plate Cover – Silver Anodized
B-DC2468-SA
V-Series Aluminum Plate Cover – Gunmetal Gray
B-DC2468-GG
V-Series Aluminum Plate Cover – Eclipse Black
B-DC2468-EB
