V1XGas-Powered Precision Meets Cantilever Freedom

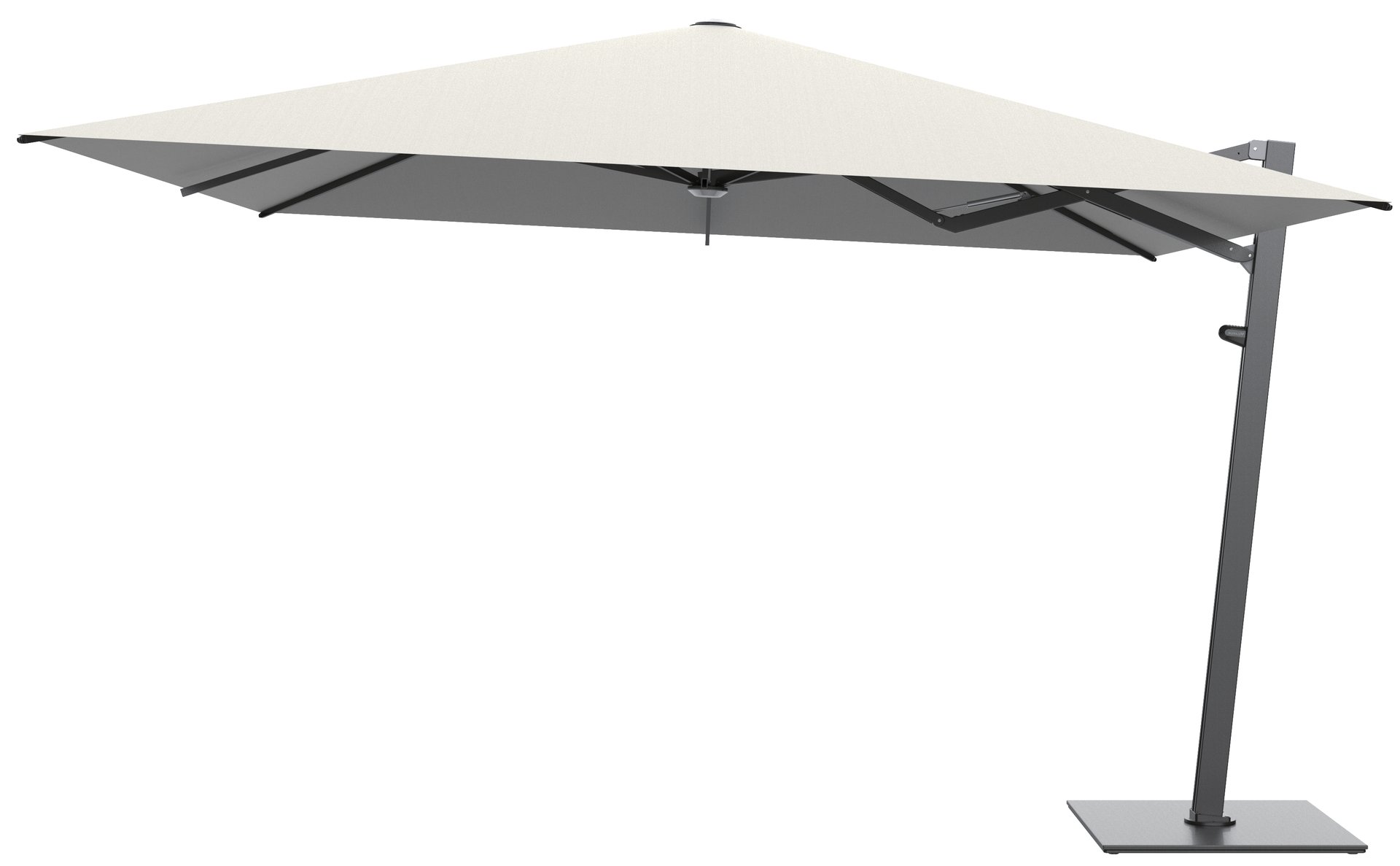

V1X Giant Aluminum Telescoping Cantilever
Where ancient Roman engineering wisdom meets modern pneumatic innovation. The V1X redefines cantilever shade with its gas-assisted mechanism — delivering effortless, gliding canopy movement that eliminates cranks and complex operations. Patented telescoping ribs rise gracefully above table height, preserving unobstructed space below. Thickened aluminum profiles and reinforced construction command stability even in demanding winds. Engineered for luxury resorts and commercial venues that refuse to compromise on performance or elegance.
Product Features
Gas-Assisted Open/Close System
- Effortless Operation: Smooth, gliding canopy movement with minimal physical effort
- Simplified Mechanics: No cranks, pulleys, or complex mechanisms required
- Seamless Experience: Pneumatic assistance delivers consistent, reliable performance
- Commercial Durability: Engineered for high-frequency daily operations in hospitality environments

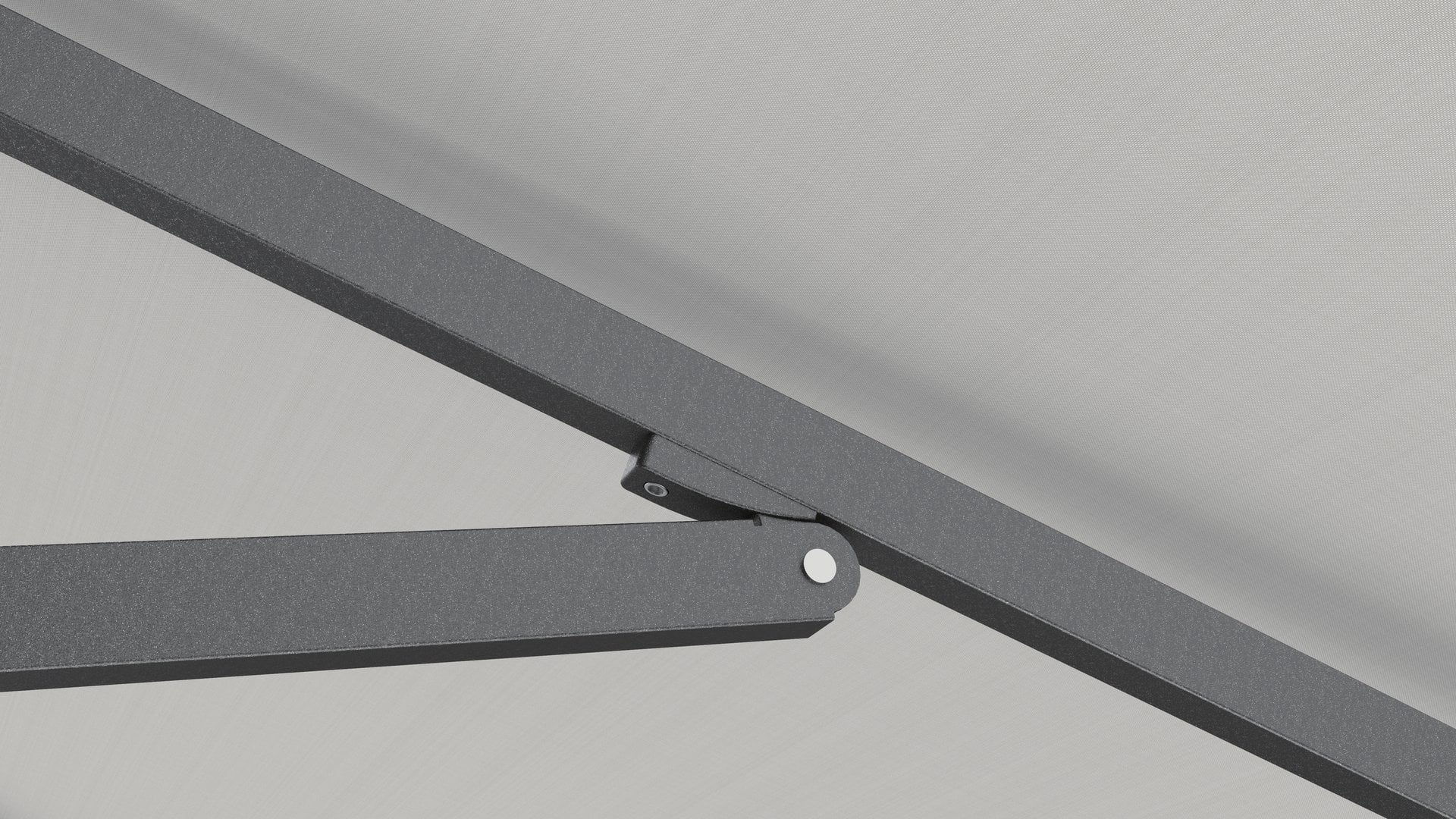

Patented Telescoping Rib Design
- Elevated Clearance: Ribs rise above table height during opening and closing
- Furniture Protection: Prevents contact with tabletops, chairs, and furnishings
- Unobstructed Space: Maintains clean, open area beneath the canopy
- Engineering Innovation: Patented mechanism that prioritizes usability and elegance

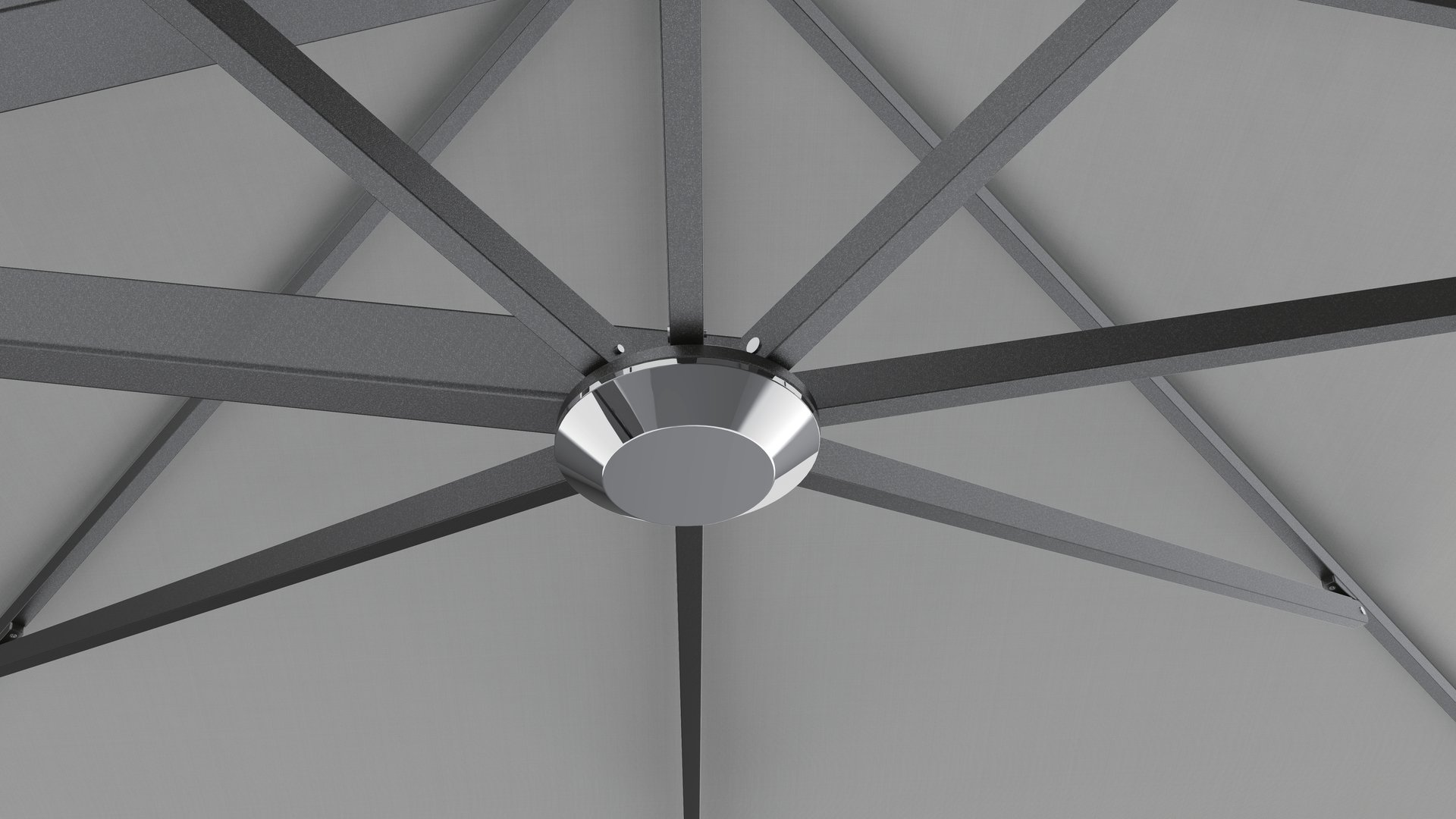

Reinforced Cantilever Construction
- Thickened Aluminum Mast: Heavy-duty rectangular profile (70×105mm) for maximum structural integrity
- Reinforced Rib System: Engineered to support large canopies up to 13’×13′
- Marine-Grade Materials: High-strength extruded aluminum for coastal and high-humidity environments
- Corrosion Resistance: Multi-layer powder-coated finish protects against harsh weather conditions
Wind-Resistant Engineering
- Superior Stability: Robust structure designed for reliable performance in strong winds
- Grade 7 Wind Rating: Tested and validated for demanding outdoor conditions
- Precision Balance: Cantilever geometry optimized for stability without excessive base weight
- Commercial Confidence: Safe, dependable operation in high-traffic environments

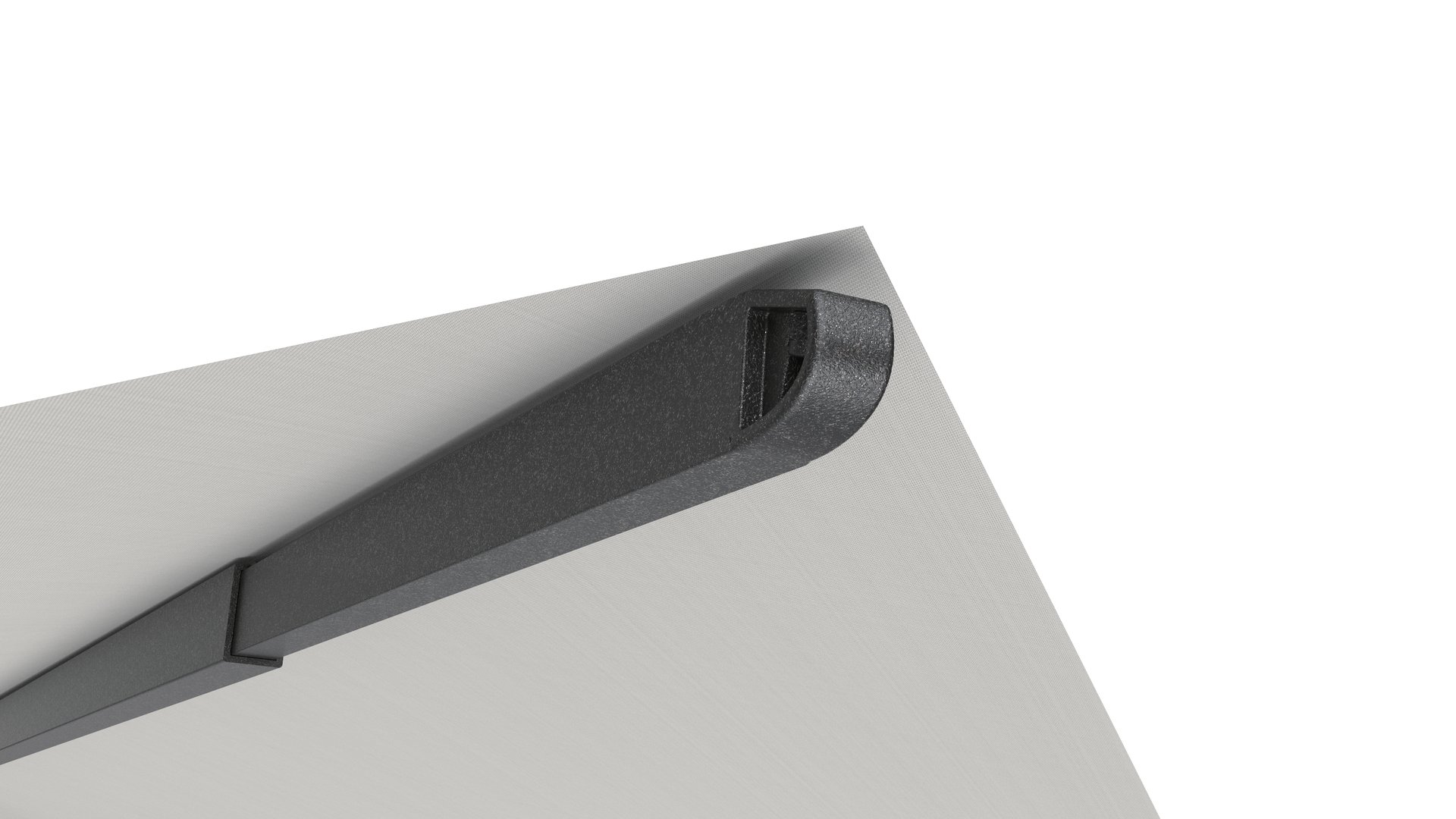

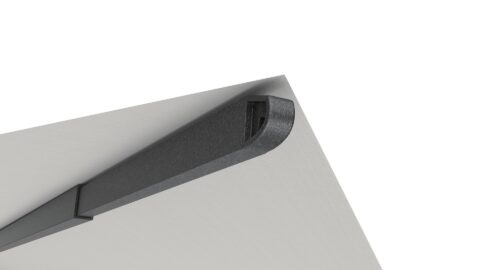

Canopy Security & Tensioning
- Reinforced Grommets: Screw-fastened rib tips keep canopy consistently tight and aligned
- Precision Anchoring: Firmly secured to frame for wind stability
- Professional Appearance: Maintains taut, wrinkle-free canopy presentation
- Long-Term Performance: Engineered to resist sagging and fabric stress over time
Available Sizes & Configurations
From intimate poolside settings to expansive resort terraces — select the ideal cantilever configuration for your commercial environment
Item ID: V1X-A35R
Shape: Round
Canopy Size: 11.5' / 3.5m diameter
Canopy Dimension (A): 137.80" (3500mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 31.50" (800mm)
Open Height (D): 127.95" (3250mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 105.6 lbs (48kg)
Min. Base Weight: 600 lbs (272.7kg)
Wind Rating: Grade 7
Item ID: V1X-A40R
Shape: Round
Canopy Size: 13' / 4m diameter
Canopy Dimension (A): 157.48" (4000mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 25.98" (660mm)
Open Height (D): 139.76" (3550mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 114.4 lbs (52kg)
Min. Base Weight: 600 lbs (272.7kg)
Wind Rating: —
Item ID: V1X-A35S
Shape: Square
Canopy Size: 11.5' × 11.5' / 3.5m × 3.5m
Canopy Dimension (A): 137.80" × 137.80" (3500 × 3500mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 31.50" (800mm)
Open Height (D): 127.95" (3250mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 110 lbs (50kg)
Min. Base Weight: 600 lbs (272.7kg)
Wind Rating: Grade 7
Item ID: V1X-A44S
Shape: Square
Canopy Size: 13' × 13' / 4m × 4m
Canopy Dimension (A): 157.48" × 157.48" (4000 × 4000mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 25.98" (660mm)
Open Height (D): 139.76" (3550mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 121 lbs (55kg)
Min. Base Weight: 800 lbs (363.6kg)
Wind Rating: —
Item ID: V1X-A34R
Shape: Rectangle
Canopy Size: 10' × 13' / 3m × 4m
Canopy Dimension (A): 118.11" × 157.48" (3000 × 4000mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 31.50" (800mm)
Open Height (D): 127.95" (3250mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 110 lbs (50kg)
Min. Base Weight: 600 lbs (272.7kg)
Wind Rating: Grade 7
Item ID: V1X-A43R
Shape: Rectangle
Canopy Size: 13' × 10' / 4m × 3m
Canopy Dimension (A): 157.48" × 118.11" (4000 × 3000mm)
Clearance (B): 88.58" (2250mm)
Closed Height (C): 25.98" (660mm)
Open Height (D): 139.76" (3550mm)
Pole Dimensions: 2.76" × 4.13" (70 × 105mm)
Number of Ribs: 8
Weight: 114.4 lbs (52kg)
Min. Base Weight: 600 lbs (272.7kg)
Wind Rating: —
Frame Finishes
Available Fabric
Suntech
Sunbrella
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Suntech
Sunbrella
Sunbrella
Sunbrella
Sunbrella
Sunbrella

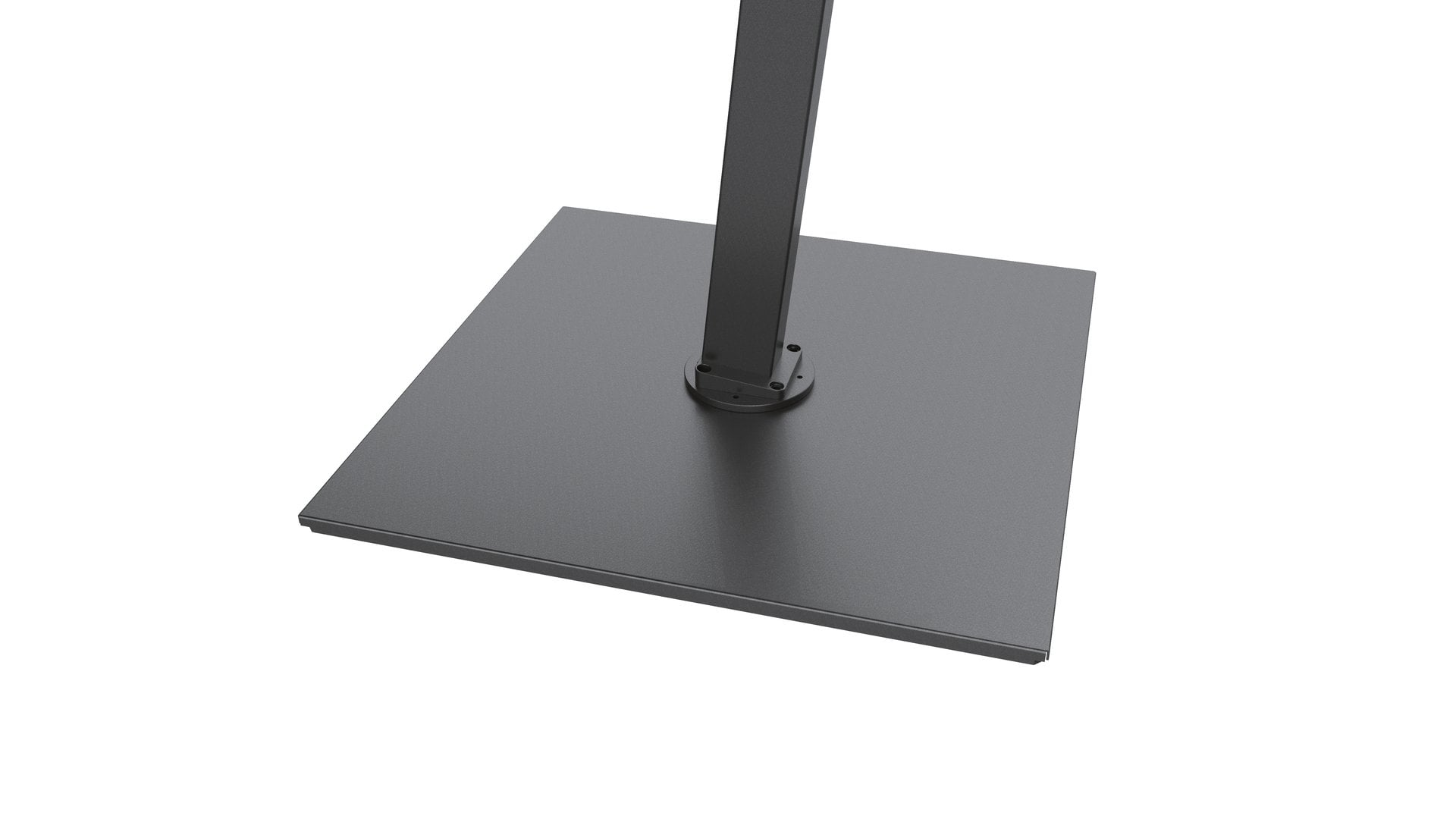

Base Options
Base Cover
V-Series Aluminum Plate Cover – Brown Marble
B-DC2468-BRM
V-Series Aluminum Plate Cover – Summit White
B-DC2468-SWH
V-Series Aluminum Plate Cover – Special Walnut
B-DC2468-SW
V-Series Aluminum Plate Cover – Silver Anodized
B-DC2468-SA
V-Series Aluminum Plate Cover – Gunmetal Gray
B-DC2468-GG
V-Series Aluminum Plate Cover – Eclipse Black
B-DC2468-EB
